Wire Gabion

Wire Gabion

A wire gabion is a type of gabion structure made from metal wire mesh, which is used to create a cage or container filled with rocks, stones, or other materials. These structures are widely used in civil engineering, landscaping, and construction for various purposes such as retaining walls, erosion control, and decorative elements.

Products

Key Characteristics of Wire Gabions:

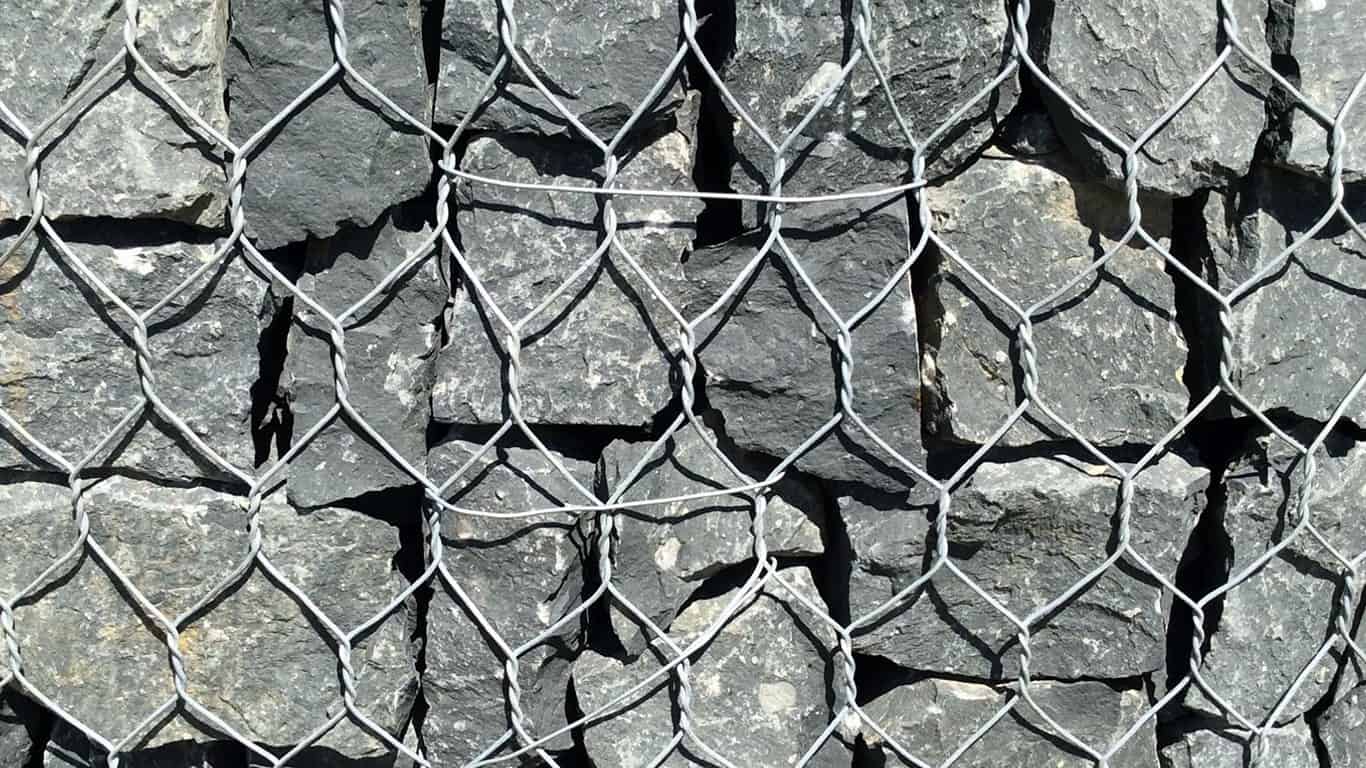

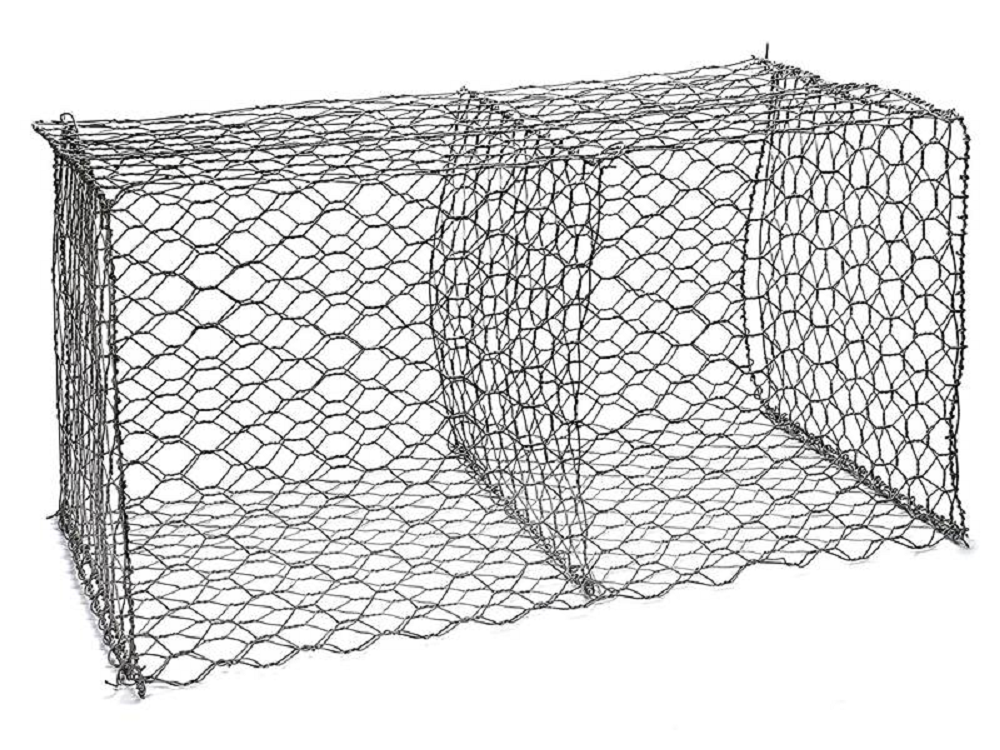

Wire Mesh (Gabion Basket): The primary structure of a gabion is a wire mesh, usually made of galvanized steel or PVC-coated steel. The mesh forms the "cage" that holds the filling material, such as stones, together.
Filling Material: Gabions are typically filled with stones, but other materials like sand or recycled concrete can also be used. The choice of material depends on the specific application and aesthetic requirements.

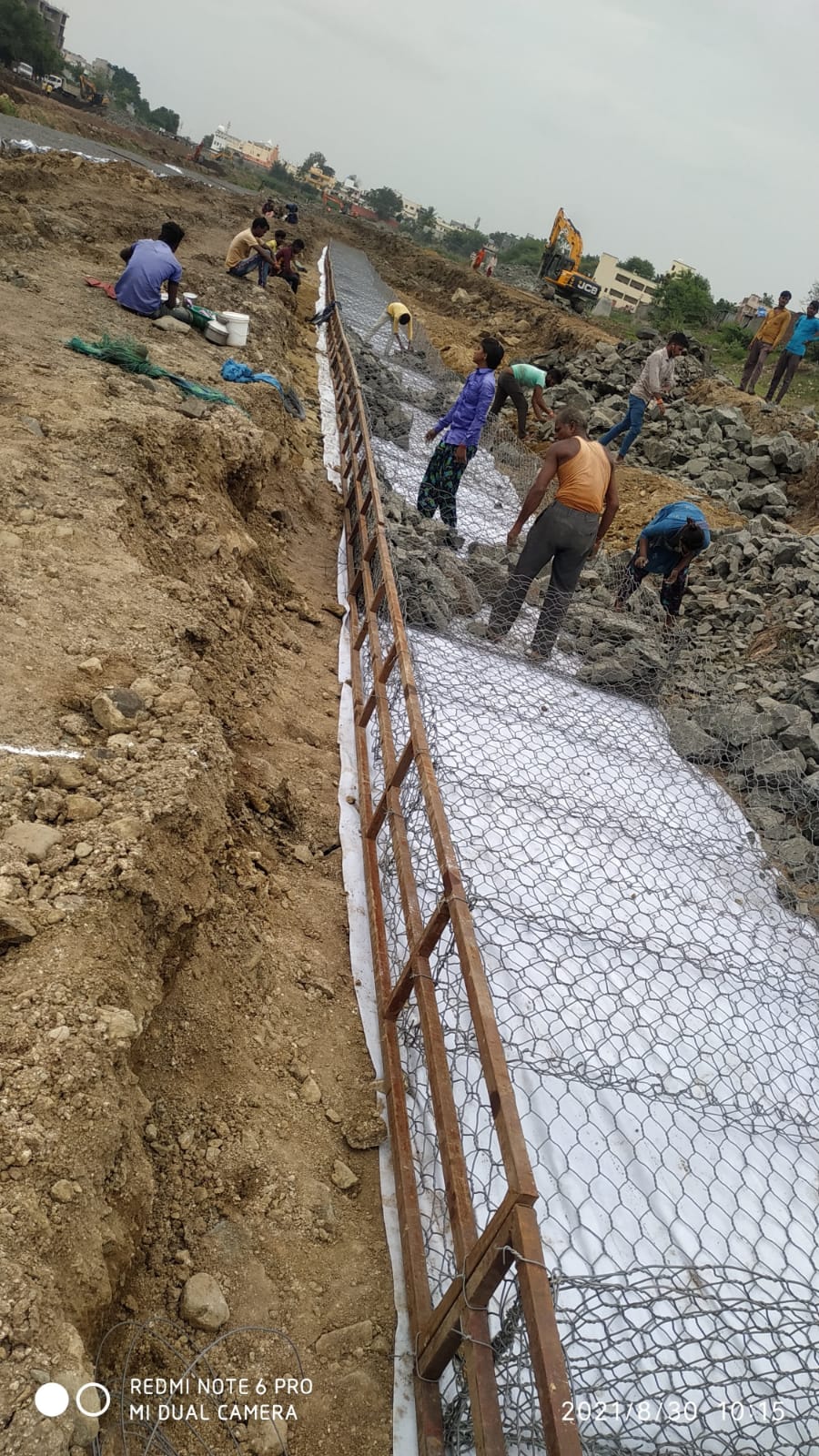

Geotextile Liner: A geotextile fabric is often placed inside the gabion before filling it with stones or other materials. This liner serves several purposes:

Filtration: It prevents fine particles from seeping through the gaps in the wire mesh, which can reduce the efficiency of the gabion.

Separation: It separates different layers of materials, maintaining the integrity of the structure and preventing contamination of the fill material.

Reinforcement: In some cases, the geotextile adds additional strength to the gabion, particularly in applications where the gabion is subjected to heavy loads or water flow.

Erosion Control: Gabions integrated with geo are highly effective in controlling erosion. The geotextile prevents soil erosion behind the gabion, while the gabion itself stabilizes the slope or embankment.
Water Management: In applications such as riverbank protection or drainage systems, the geotextile inside the gabion allows water to pass through while trapping soil particles, preventing erosion and sedimentation.

Applications of Gabion with :
1)Retaining Walls: Gabions are used to construct retaining walls that support slopes or prevent soil movement. The addition of geo enhances the wall’s stability and longevity.

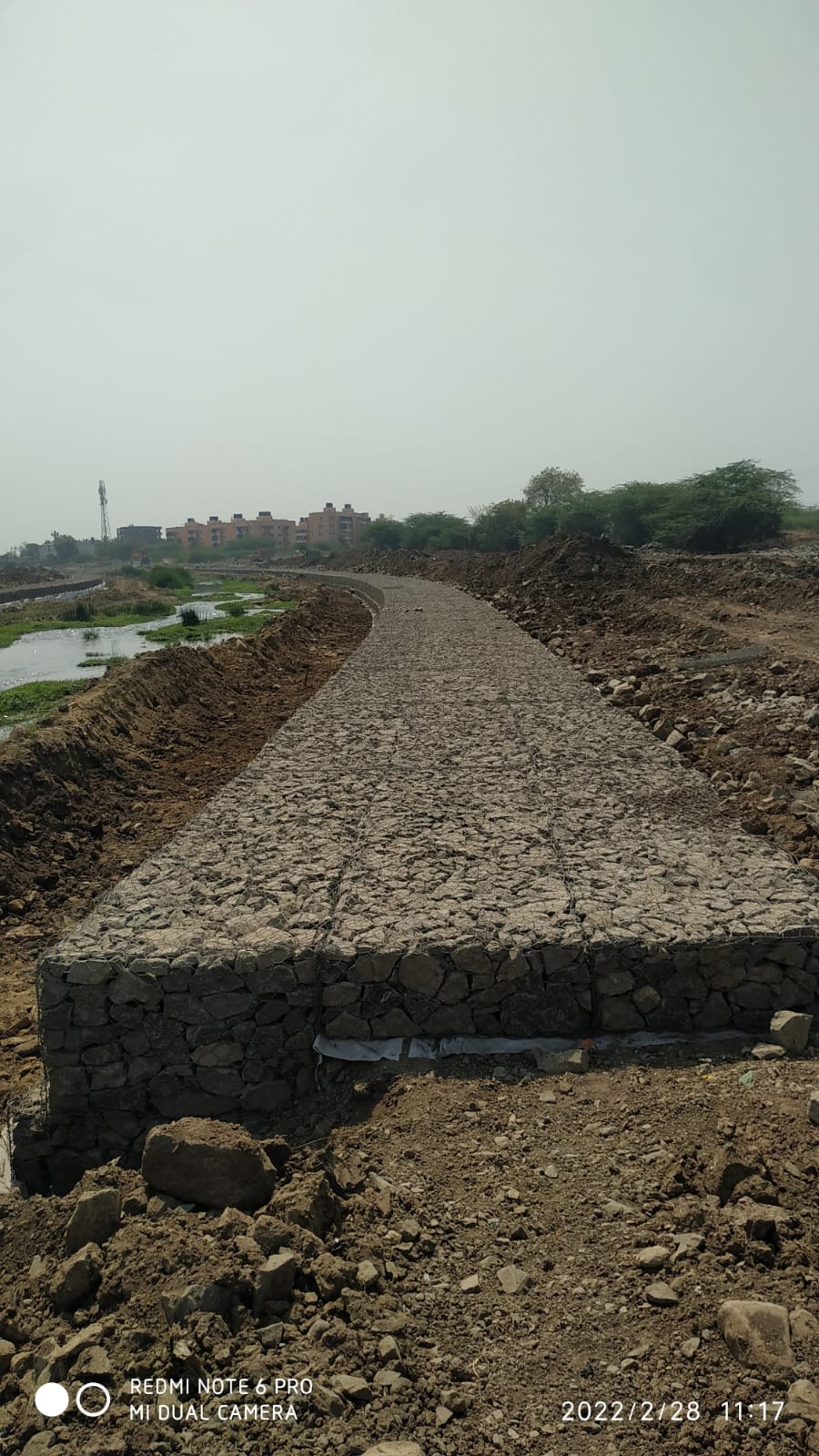

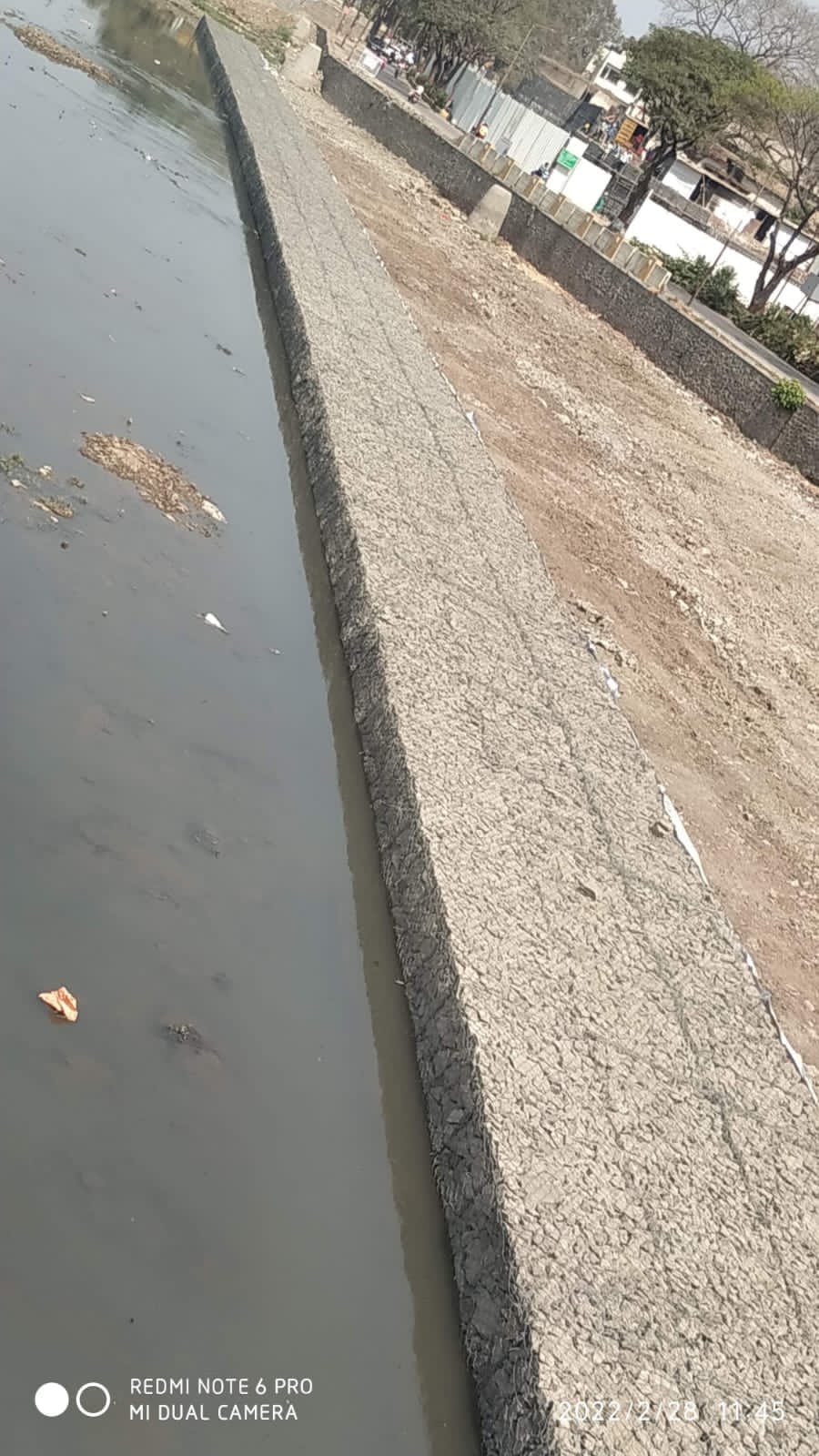

2)Riverbank Protection: Gabions lined with geo are placed along riverbanks to prevent erosion caused by water flow. The geotextile ensures that the soil behind the gabion remains intact, while the gabion itself disperses the energy of the flowing water.
3)Slope Stabilization: On slopes, gabions combined with geo are used to prevent landslides and soil erosion, particularly in areas with heavy rainfall or steep inclines.
4)Landscaping: In landscaping projects, gabions filled with aesthetically pleasing stones are used to create terraces, garden walls, or decorative features. The geotextile ensures that the structure remains stable over time.

Benefits of Gabion with :
1)Enhanced Durability: The combination of gabions with geo increases the lifespan of the structure by preventing soil loss and maintaining the integrity of the fill material.
2)Versatility: Gabions can be used in various applications, and the addition of geo makes them suitable for more challenging environments.
3)Cost-Effective: Gabions are relatively inexpensive to construct, and the use of geo reduces maintenance costs by preventing issues like soil erosion and contamination.
4)Environmental Integration: Gabions can be filled with natural materials, and when combined with geo, they support vegetation growth, blending into the natural environment.
Gabions integrated with are a robust solution for a wide range of engineering and environmental challenges, providing stability, durability, and environmental benefits.
